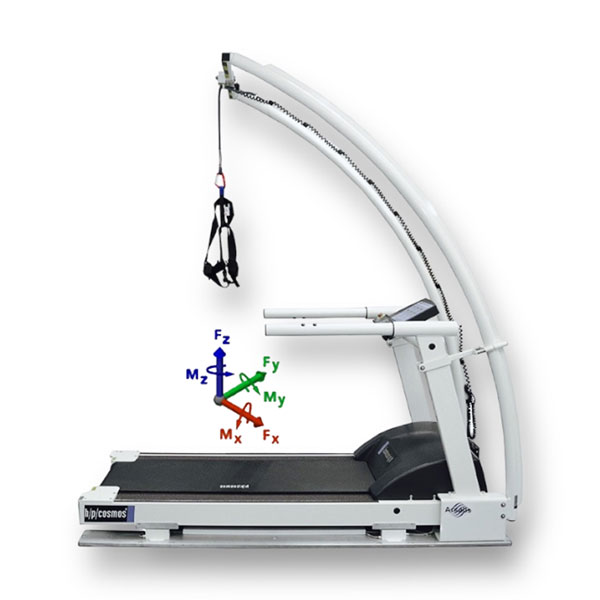

Gaitway 3D without elevation
Specifications
Downloads
Videos
| RUNNING SURFACE | L: 150 cm W: 50 cm L: 170 cm W: 65 cm L: 190 cm W: 65 cm |
| SPEED RANGE | 0 - 18.0 km/h for 150/50 0 - 25.0 km/h for 170/65 0 - 40.0 km/h for 190/65 |
| MEASURING RANGE ON EACH SENSOR | Fx, Fy : ± 0.8 kN Fz: 2.5 kN (adjustable upon request) |
| RESOLUTION | Fx, Fy : ± 46 mN Fz: 91 mN (adjustable upon request) |
| SENSOR OVERLOAD | Fx, Fy, Fz : 24 kN |
| LINEARITY | Fx, Fy, Fz: <0.2 % |
| HYSTERESIS | Fx, Fy: <0.8 % Fz: <0.2 % |
| CROSS-TALK | Fz -> Fx, Fy: <1.0 % |
| DRIFT | Fx, Fy, Fz: <0.05 N/min |
| NATURAL FREQUENCY (unloaded, no elevation) | Fx : 45 Hz Fy, Fz: 60 Hz |
| SAMPLING RATE | 100 to 10 kHz |
| AUDIBLE NOISE | Noise emission LpA <70 dB(A) (63dB) acc. EN957-6 |
| TEMPERATURE OPERATION | 10 to 40°C 40 to 104°F |
| TEMPERATURE STORAGE | -25 to 40°C -13 to 104°F |
| STORAGE HUMIDITY | 0 - 95% (non-condensing) |
| AIR PRESSURE | 700-1060 hPa (max 3000m altitude) |
- Safety arch with fall stop
- Detachable handrails
- Science port for raw speed data
- Special speed (0 - 40 km/h for 170/65 and 0 - 45 km/h for 190/65)
- Reverse belt rotation
- Non-reflective powder coating
- Qualisys and Vicon integration 3d motion capture systems
- NORAXON : EMG software & video cameras, IMUs,
- Zebris FDM upgrade
