Gaitway 3D

instrumented treadmill

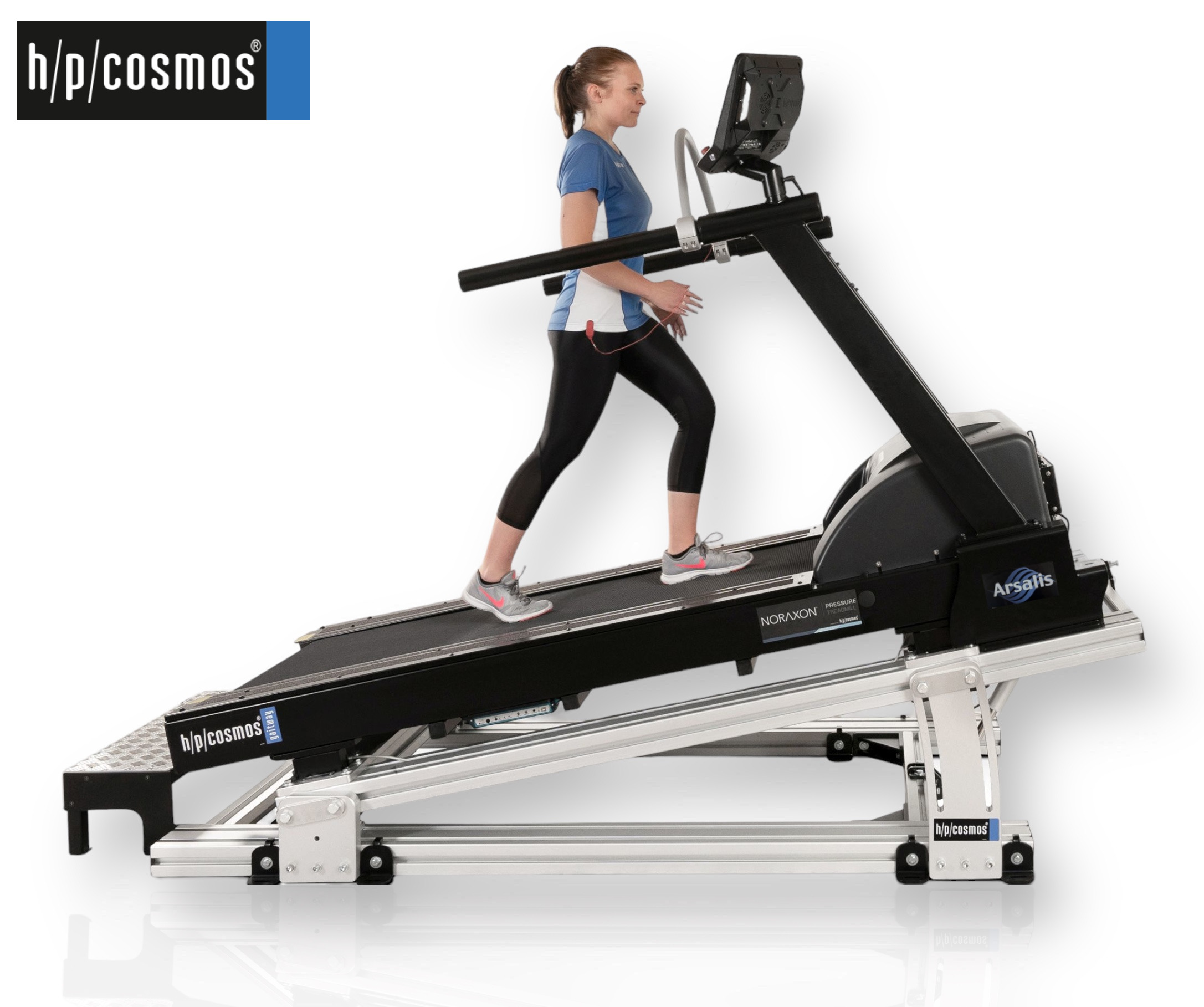

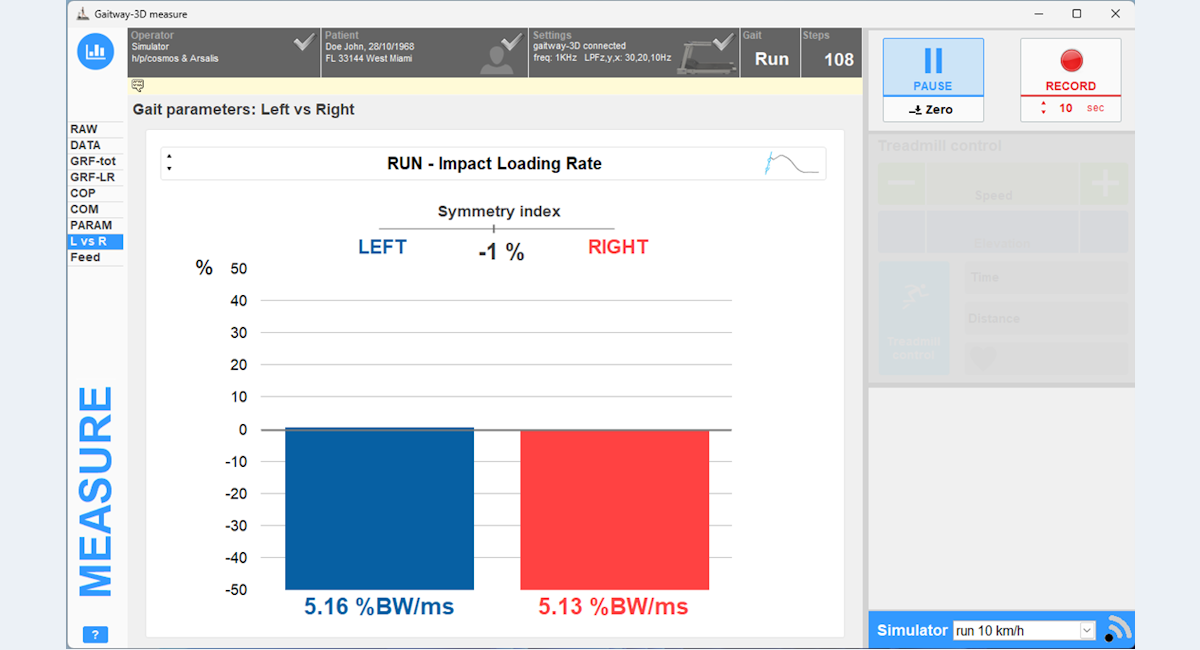

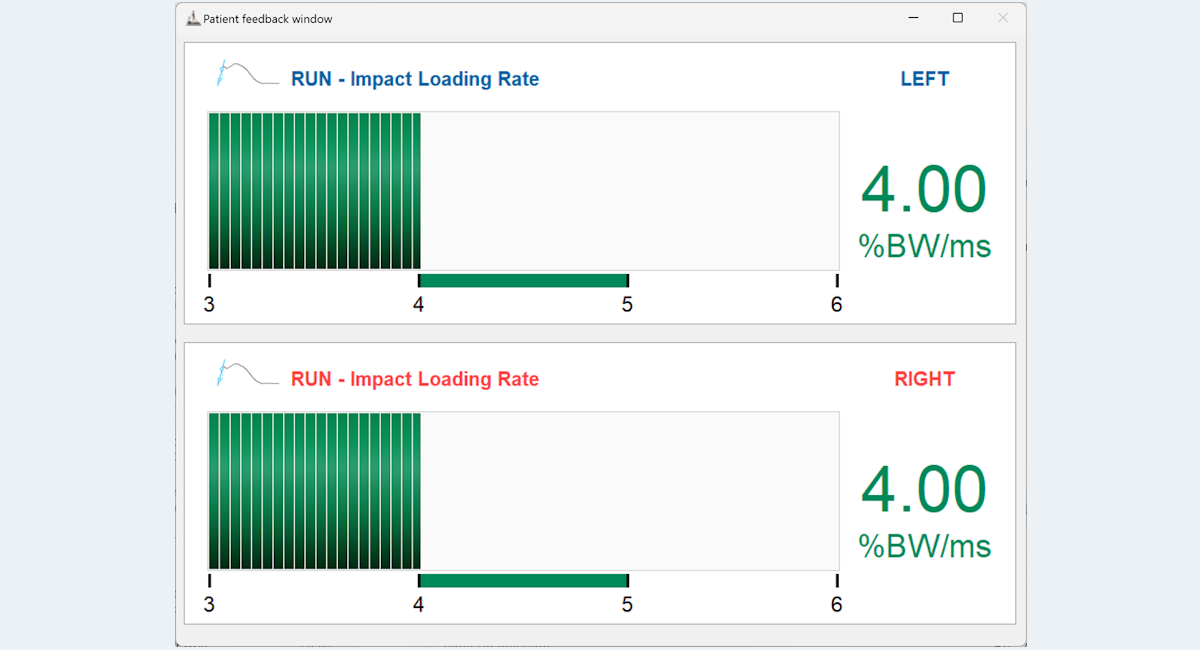

The gaitway 3D is a joint development by Arsalis and h/p/cosmos sports & medical gmbh. It is the first instrumented single belt treadmill measuring the ground reaction forces in three directions. The gaitway 3D is a powerful, innovative, and accurate system in biomechanics not only for analysis but also offering on-line biofeedback for corrections in clinical gait rehabilitation and athletic running applications.

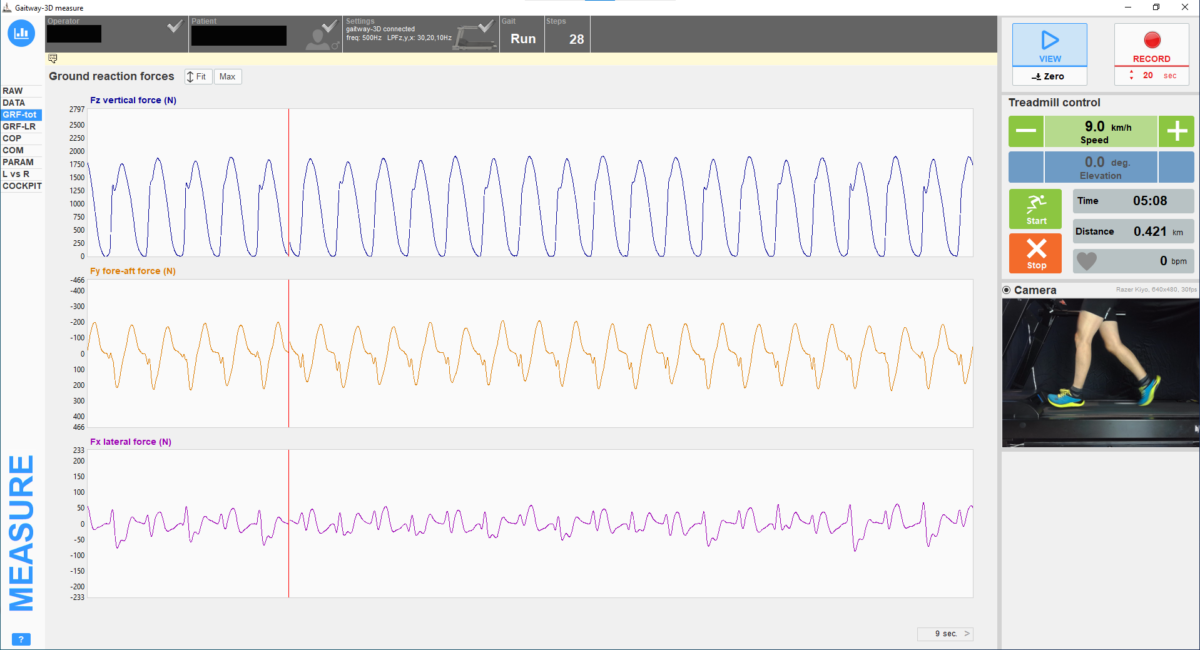

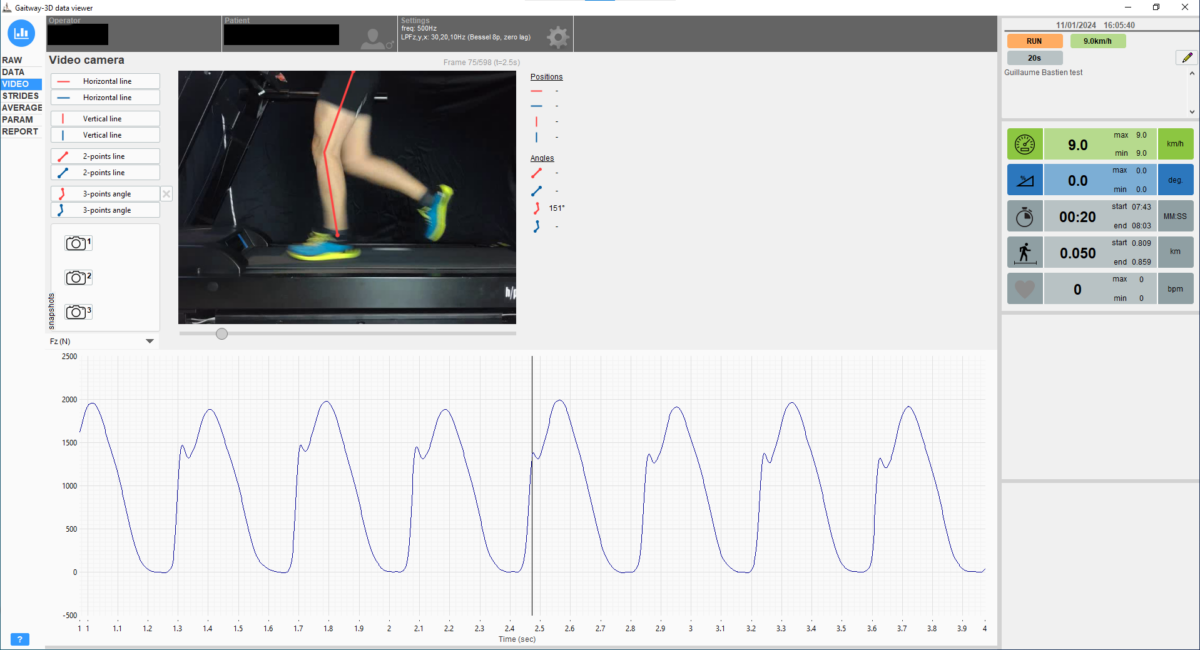

The functionalities include a recording of the ground reaction forces at rates up to 10 kHz, left and right force decomposition on the fly automatic detection between walking and running and an extensive list of biomechanical parameters of normal and pathological gait.


    • NBiomechanics
    • NScience and Clinical Research
    • NAthletic Prevention, Performance and Training
    • NGait Rehabilitation


    • NData recording & analysis (e.g. for research facilities)
    • NPatient evaluation (e.g. for clinical research facilities)
    • NOnline feedback to user (e.g. for training facilities)

    System performance features

    • NExtremely wide measuring range
    • NExcellent measuring accuracy
    • NBuilt-in amplifier with acquisition system
    • NLAN connection
    • NControl, acquisition & analysis software included
    • NDigital trigger inputs/output for synchronisation with EMG and MoCap system
    • NFull access to raw data and processed data
    • NCost-effective

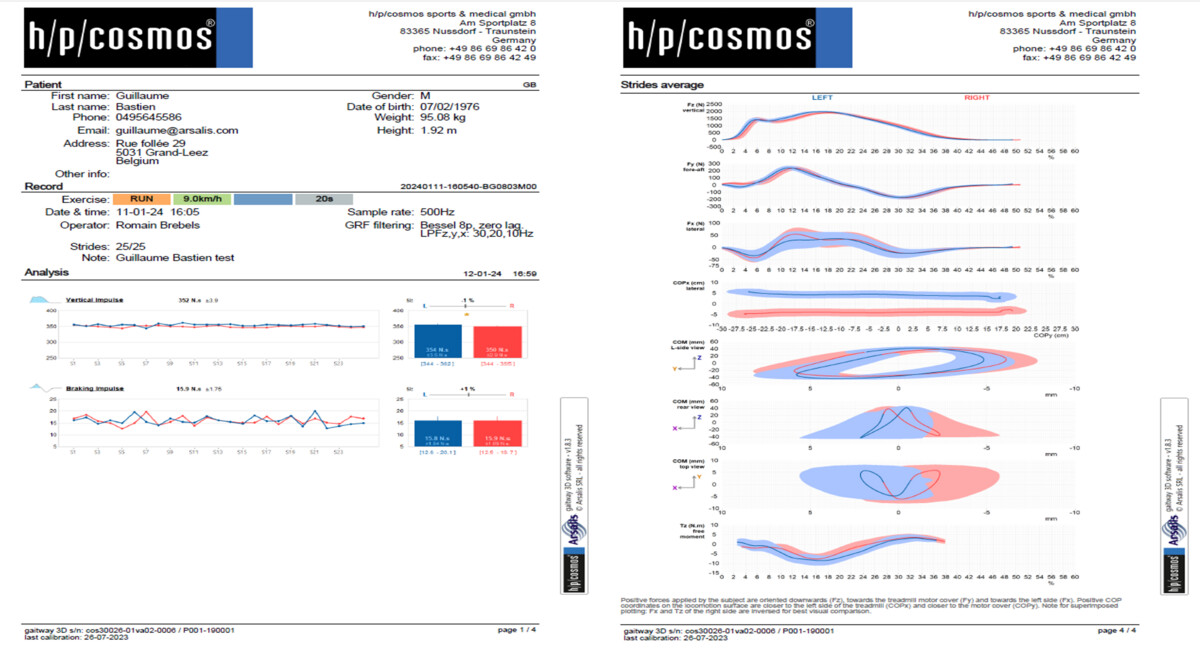

    Biomechanical parameters

    • NStep length, width, frequency
    • NSwing / stance duration
    • NContact / aerial durations
    • NStride asymmetry
    • NForce peaks (push-off, landing)
    • NLoading and unloading rate

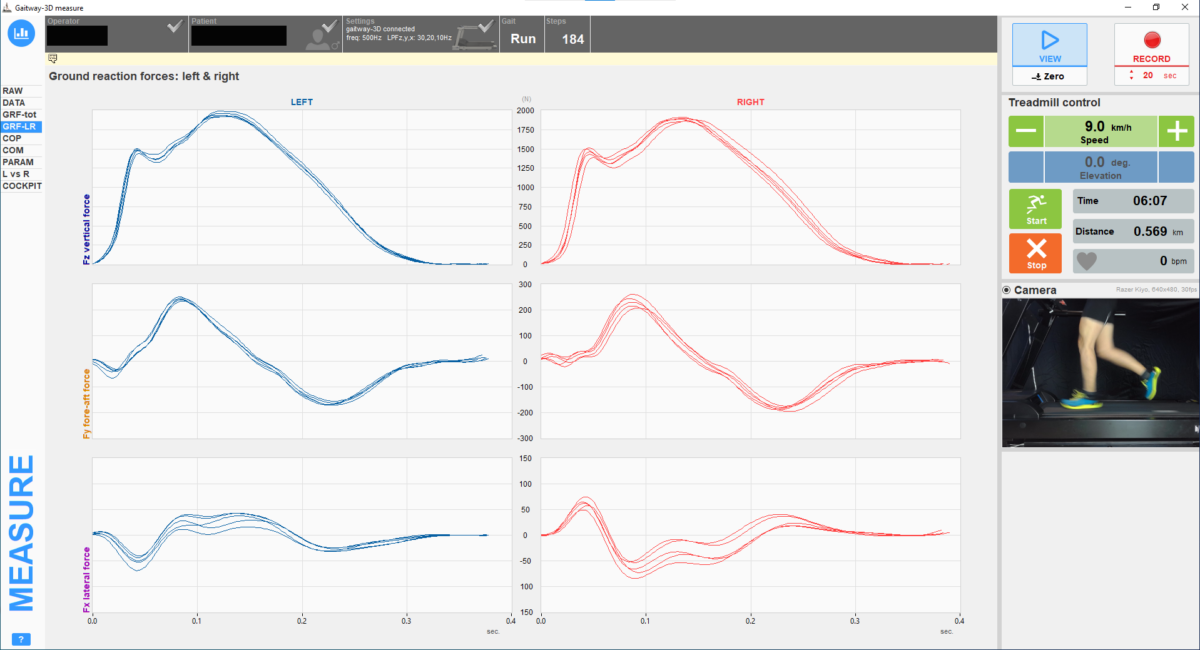

    • NLeft / Right foot 3D force decomposition
    • NCenter of pressure
    • NCenter of mass 3D displacement
    • NMechanical work
    • NMore biomechanical parameters


      Lab integration

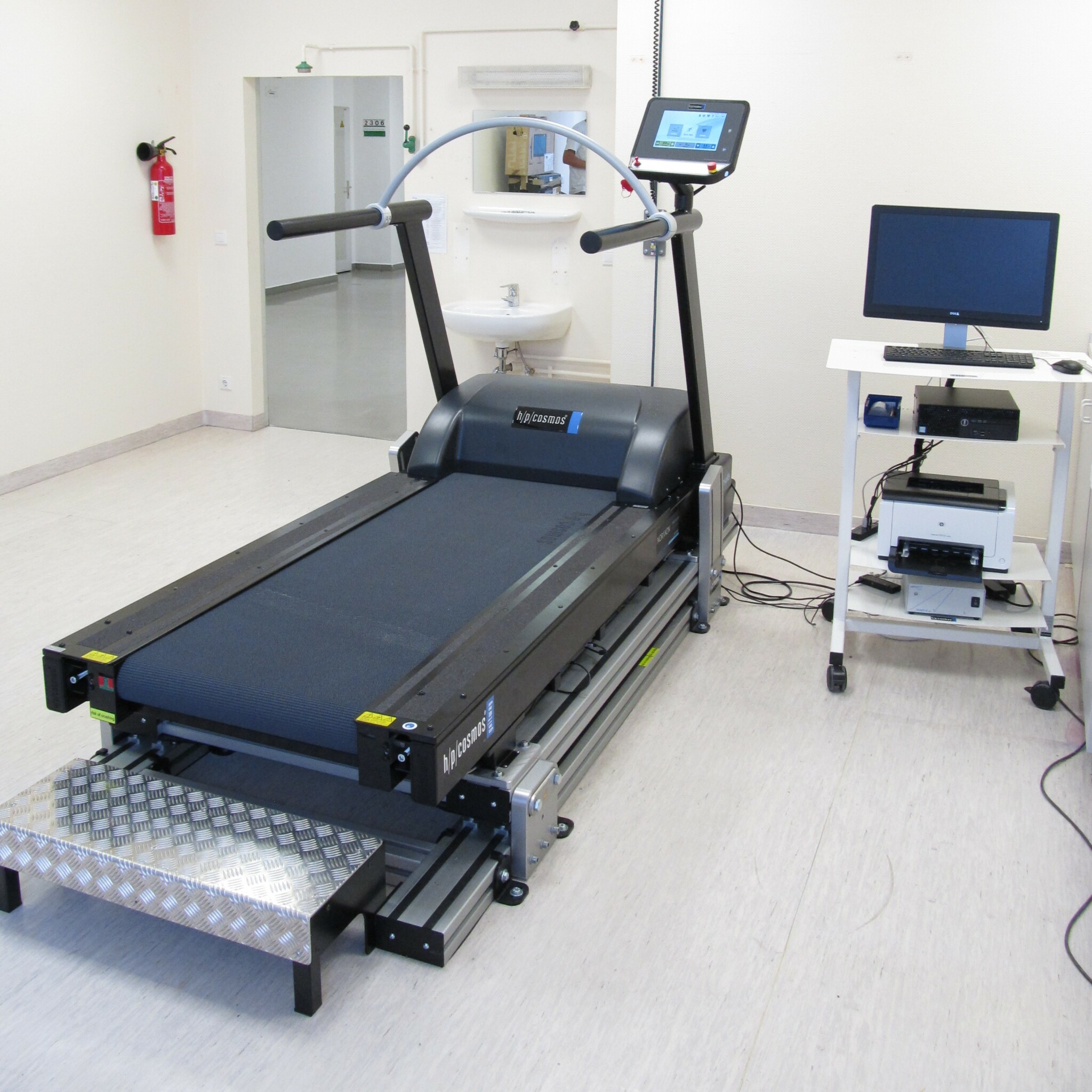

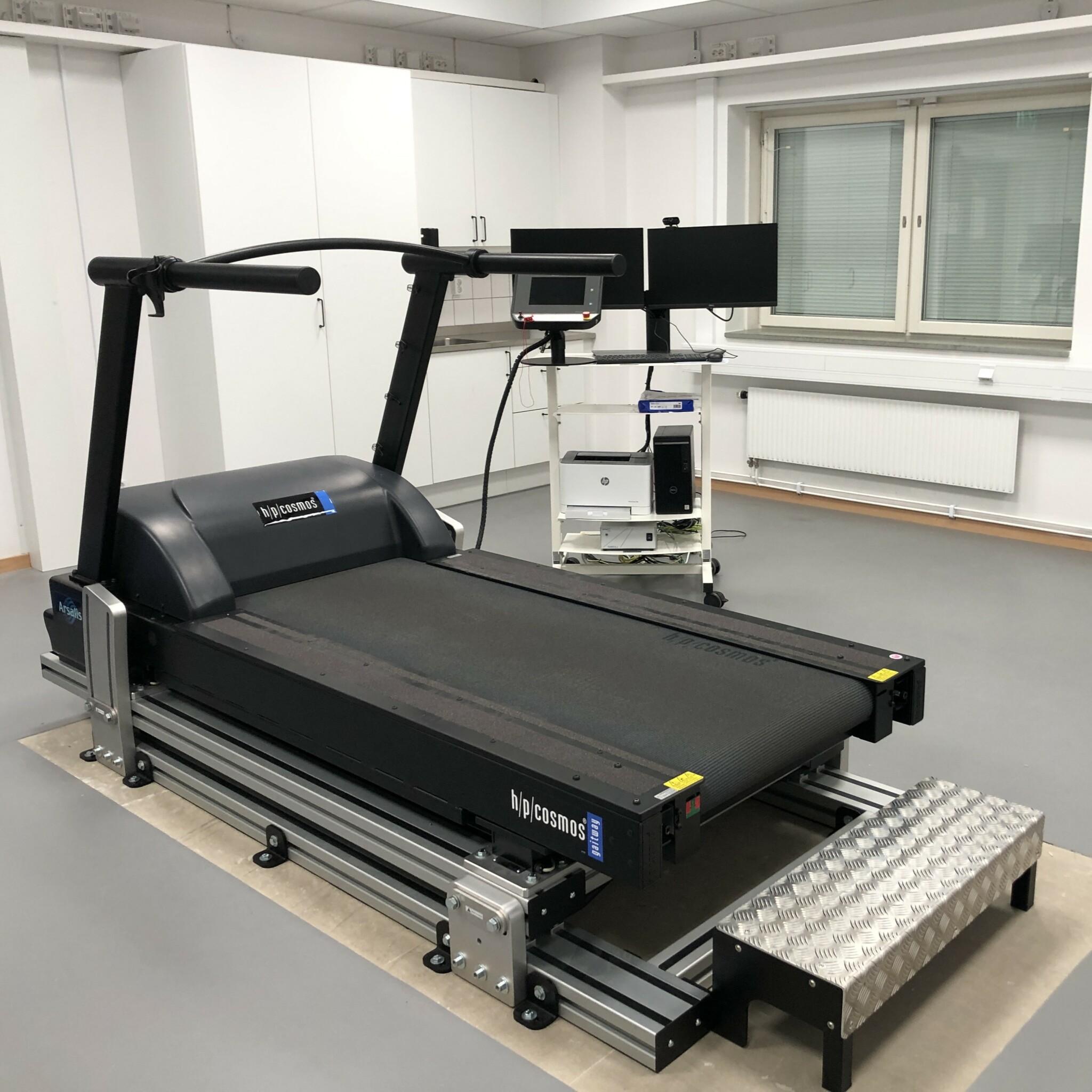

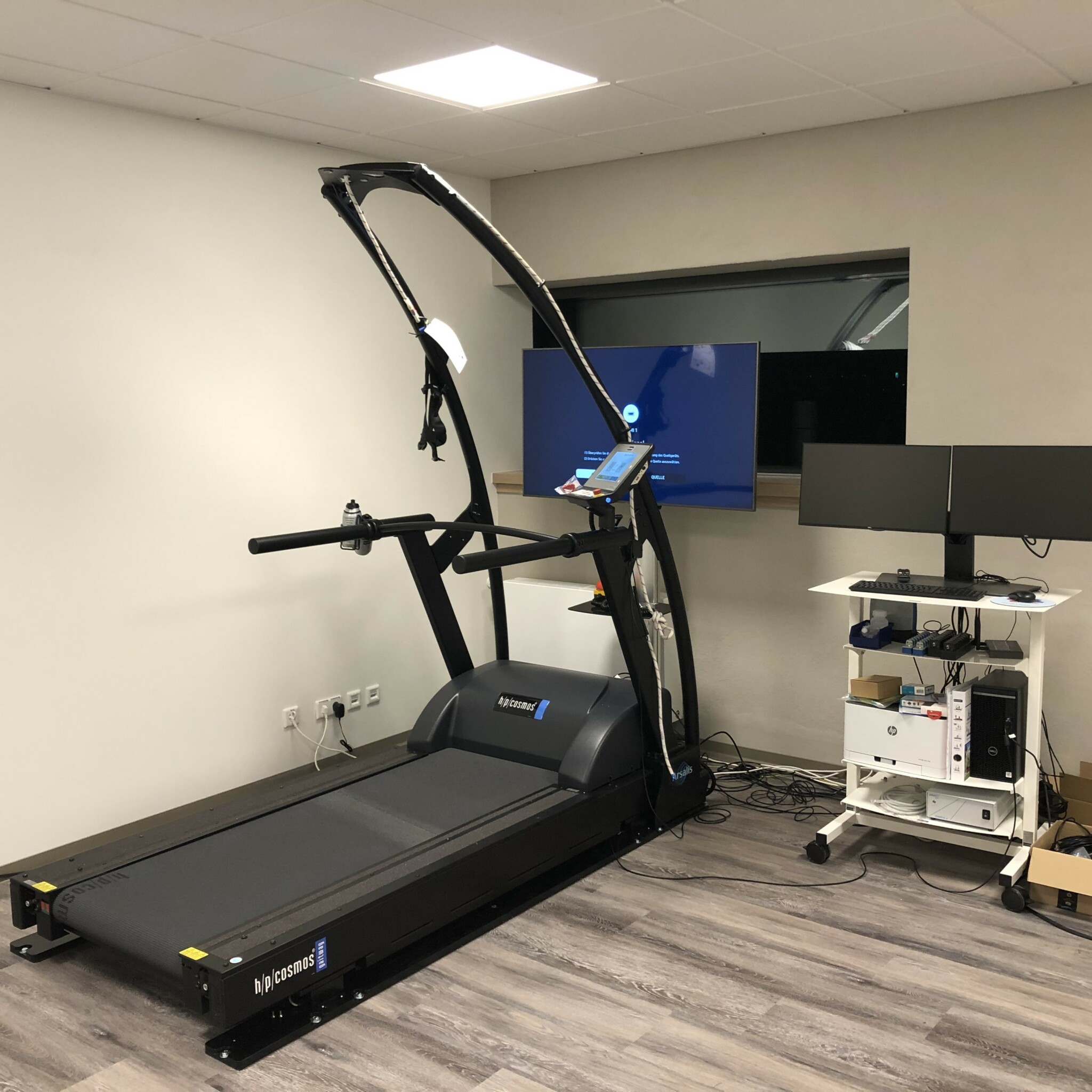

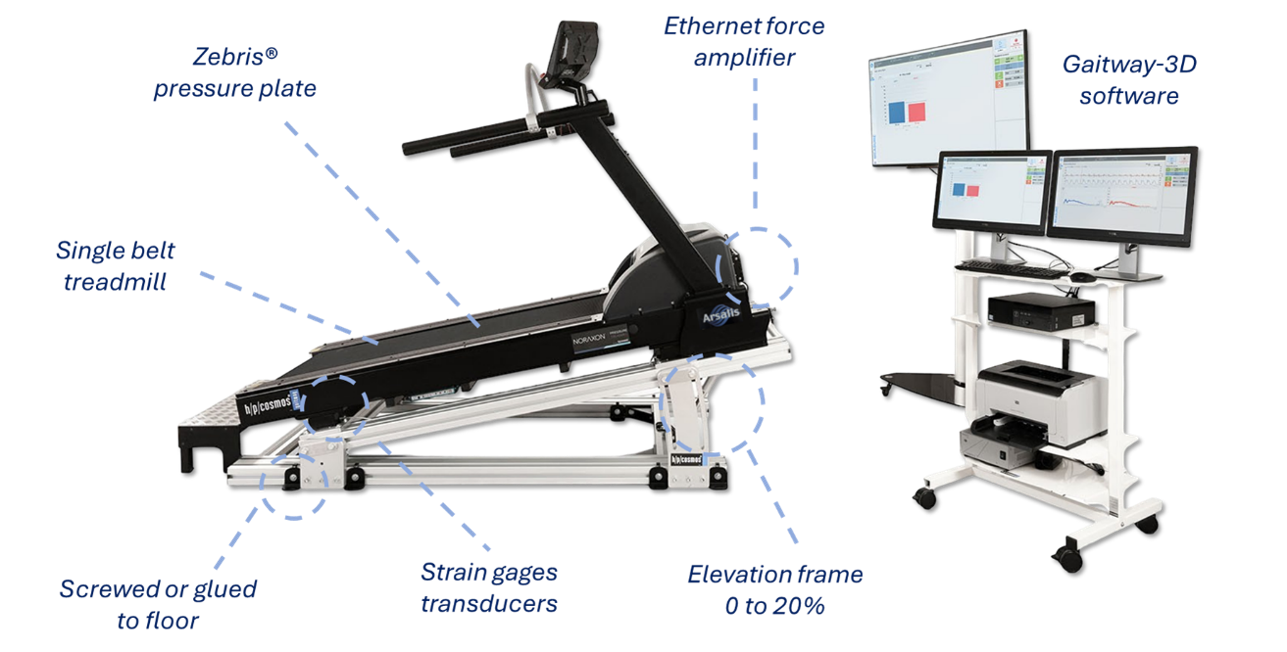

      The gaitway 3D is a fully instrumented single belt treadmill including 4 strain gauge sensors measuring the vertical, fore-aft and lateral ground reaction forces during locomotion. It offers a rigid construction screwed or glued on the floor to record optimal quality signals

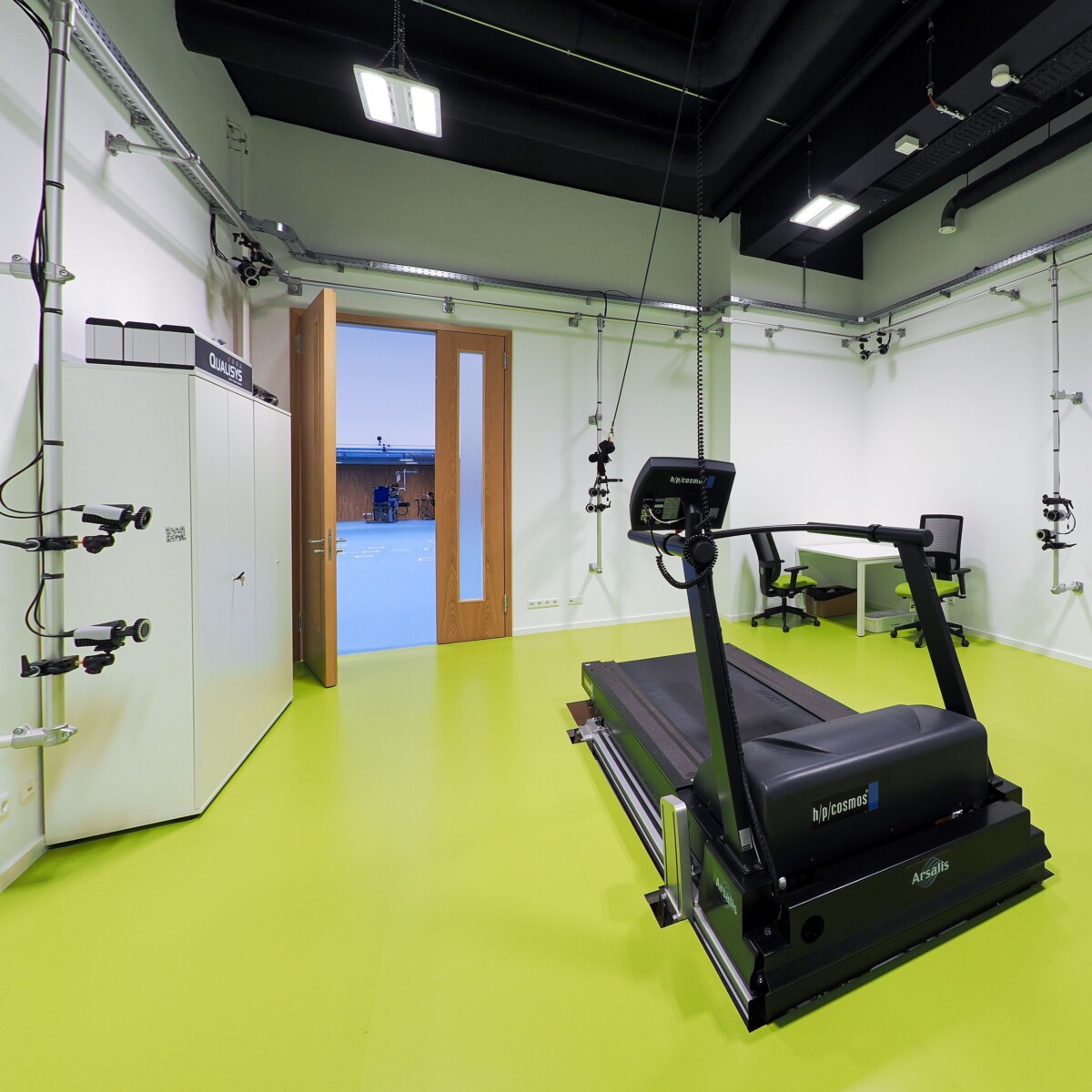

      The gaitway 3d treadmill is the first in the industry to combine 3D force and optional pressure metrics on a single belt treadmill. It can also be interfaced with 3D motion tracking systems, electromyographs and metabolic energy expenditure measurement systems routinely used in gait analysis labs.


      1. Altman, Reisman, Higginson & Davis, I. S.
        Kinematic comparison of split-belt and single-belt treadmill walking and the effects of accommodation.
        Gait Posture. 2012 Feb;35(2):287-91. doi: 10.1016/j.gaitpost.2011.09.101. Epub 2011 Oct 19. PMID: 22015048; PMCID: PMC3274623.
      2. Bastien GJ, Gosseye TP, Penta M.
        A robust machine learning enabled decomposition of shear ground reaction forces during the double contact phase of walking.
        Gait Posture. 2019 Sep;73:221-227. doi: 10.1016/j.gaitpost.2019.07.190. Epub 2019 Jul 9. PMID: 31374439.
      3. Davis BL, Cavanagh PR.
        Decomposition of superimposed ground reaction forces into left and right force profiles.
        J Biomech. 1993 Apr-May;26(4-5):593-7. doi: 10.1016/0021-9290(93)90020-f. PMID: 8478360.
      4. Dierick F, Penta M, Renaut D, Detrembleur C.
        A force measuring treadmill in clinical gait analysis.
        Gait Posture. 2004 Dec;20(3):299-303. doi: 10.1016/j.gaitpost.2003.11.001. PMID: 15531177.
      5. Meurisse GM, Dierick F, Schepens B, Bastien GJ.
        Determination of the vertical ground reaction forces acting upon individual limbs during healthy and clinical gait.
        Gait Posture. 2016 Jan;43:245-50. doi: 10.1016/j.gaitpost.2015.10.005. Epub 2015 Oct 17. PMID: 26549482.
      6. Oggero E, Pagnacco G, Morr DR, Simon SR, Berme N.
        Probability of valid gait data acquisition using currently available force plates.
        Biomed Sci Instrum. 1997;34:392-7. PMID: 9603072.
      7. Raison, Detrembleur, Fisette, Penta, Samin & Willems.
        Determination of ground reaction forces and centres of pressure of both feet during normal walking on a single platform.
        Computer Methods in Biomechanics and Biomedical Engineering 2005, 8(S1), 227-228.
      8. Sloot LH, van der Krogt MM, Harlaar J.
        Self-paced versus fixed speed treadmill walking.
        Gait Posture. 2014;39(1):478-84. doi: 10.1016/j.gaitpost.2013.08.022. Epub 2013 Aug 31. PMID: 24055003.
      9. Zeni JA Jr, Higginson JS.
        Gait parameters and stride-to-stride variability during familiarization to walking on a split-belt treadmill.
        Clin Biomech (Bristol, Avon). 2010 May;25(4):383-6. doi: 10.1016/j.clinbiomech.2009.11.002. Epub 2009 Dec 9. PMID: 20004501; PMCID: PMC2847055.
